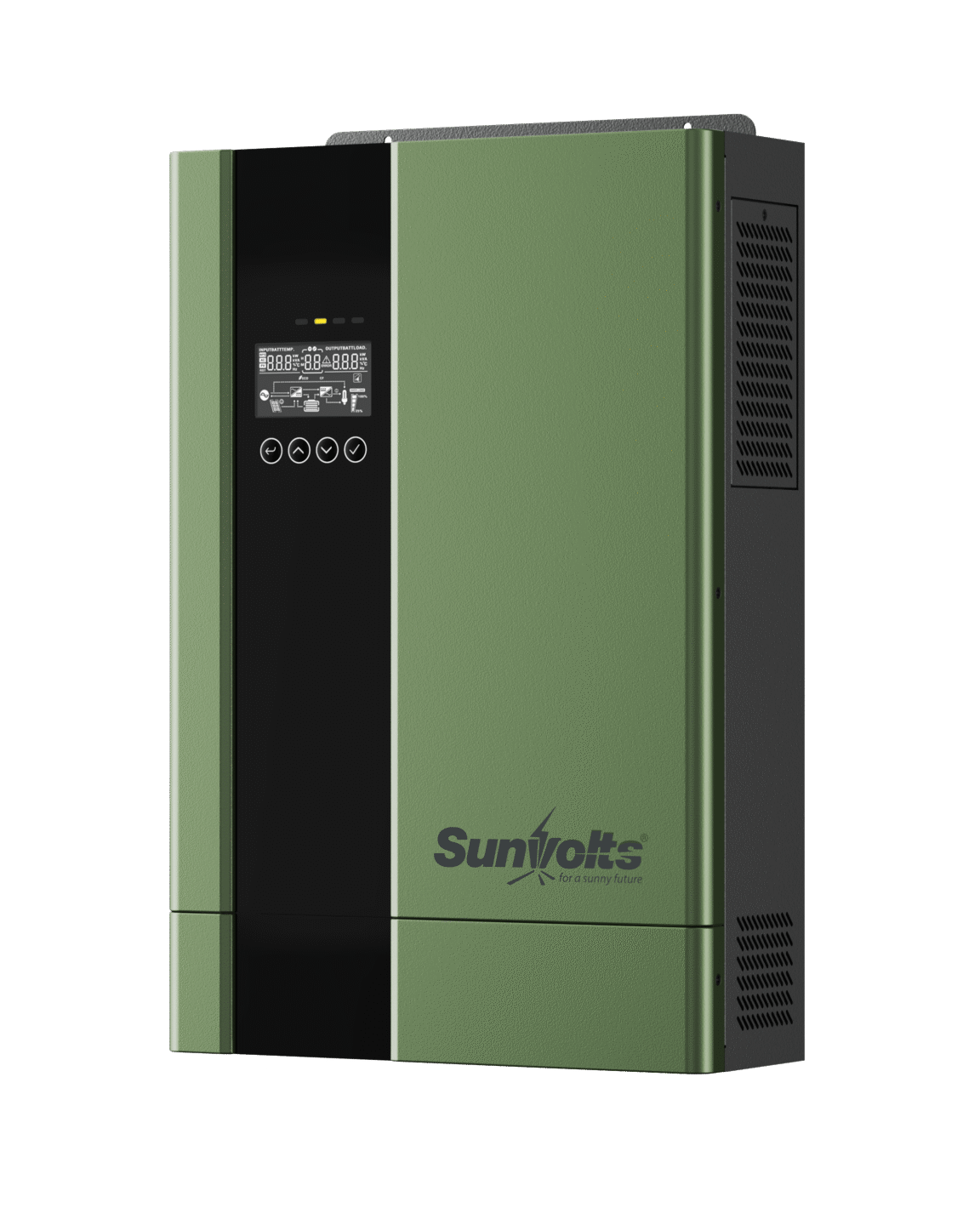

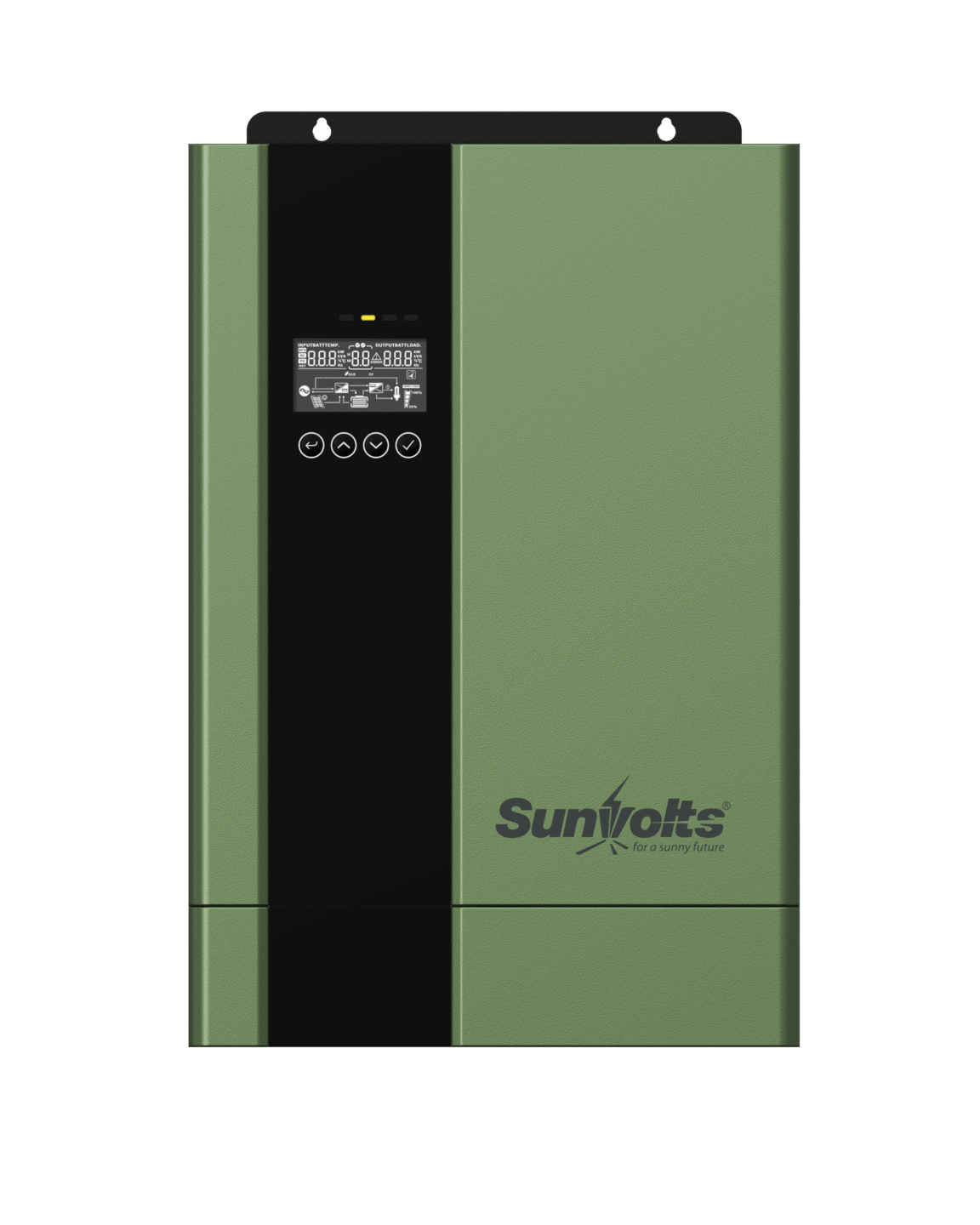

Sunvolts 3.6 kW Hybrid Inverter (PV5000, 24V)
Original price was: ₨ 109,900.₨ 87,920Current price is: ₨ 87,920.
Supports
- 2 or More Load Ports
- “Never Overload” Operations
- Solar Power Feed to All Loads
- Controlled Export Functionality (Zero/Partial/Full)
Supports
- 2 or More Load Ports
- “Never Overload” Operations
- Solar Power Feed to All Loads
- Controlled Export Functionality (Zero/Partial/Full)
| Feature | PV5000-24 |
| AC Input | |
| Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90–280 ± 3 (normal mode)
170–280 ± 3 (UPS mode) |
| Frequency (Hz) | 50 / 60 (Auto Adaptable) |
| AC Output | |
| Rated Capacity (kW) | 3.6 |
| Surge Power (kVA) | 5.7 |
| Voltage (VAC) | 208 / 220 / 230 / 240 |
| Power Factor (PF) | 1 |
| Frequency | 50/60Hz ± 0.1% |
| Switch Time (ms) | 10 (normal mode) / 10 (UPS mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 60s @ 102-110% load
10s @110-130% load 3s @ 130-150% load 0.2s @ >150% load |
| Max. Efficiency (Battery Mode) | 92.7% ± @ 24VDC |
| Parallel Quantity | NA |
| Charger (PV / AC) | |
| Solar Charger Type | MPPT |
| Max PV Input Current / Input Power | 18A / 5000W |
| MPPT Range @ Operating Voltage (VDC) | 40–450 |
| Max PV Open Circuit Voltage (VDC) | 500 |
| Max PV Charge Current (A) | 100 |
| Max AC Charge Current (A) | 100 |
| Max Charge Current (PV + AC) (A) | 100 |
| Battery | |
| Rated Voltage (VDC) | 24 |
| Floating Charge Voltage (VDC) | 27 |
| Overcharge Protection (VDC) | 30.5 |
| Battery Type | Lithium and Lead-acid |
| Interface | |
| HMI | LCD |
| Interfaces | RS485 / RS232 / USB / Dry Contact |
| Monitoring | WiFi (optional) |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10°C ~ 50°C |
| Relative Humidity | 5% ~ 95% (Non-condensing) |
| Storage Temperature | -15°C ~ 60°C |
| Net Weight (kg) | 6.4 |
| Dimensions (W×H×D) | 490×306×115mm (without bracket) |
| Max. Operating Altitude | 4000m (Derating above 1000m) |
1 review for Sunvolts 3.6 kW Hybrid Inverter (PV5000, 24V)
Clear filtersAt JWM Wares, we aim to provide fast, reliable, and transparent shipping for all of our products, as well as efficient delivery of our services. Please review our Shipping & Services Policy below to understand your delivery options and related details.
1. Shipping Coverage
We currently only ship JWM Wares products nationwide within the Islamic Republic of Pakistan. If you are located outside of our designated area of coverage, please contact our support team for possible arrangements at info@jwmwares.com with your request clearly stated in the subject line of your email.
Please note: International shipping may be subject to customs duties and import taxes, which are the responsibility of the customer to cover.
2. Processing Time
- Orders are processed within 1–3 business days after payment confirmation.
- Orders placed on weekends or public holidays will be processed on the next available business day.
3. Shipping Methods & Delivery Time
Standard Shipping:
- 24 hours within Lahore,
- 24-48 hours within the province of Punjab/between province-to-province main cities.
- 72+ hrs for remote or far-flung areas
Although we do our best to make sure you receive your items on time, delivery times may vary depending on your location, weather conditions, or any other delays with the courier.
4. Shipping Costs
- Shipping fees are calculated at checkout.
- Free shipping may apply to orders above a certain amount, as stated in valid JWM promotions.
5. Order Tracking
Once shipped, you will receive a tracking number via email or SMS to monitor your delivery status.
6. Failed Deliveries
If your delivery is unsuccessful due to an incorrect address or unavailability, you may be subjected to re-delivery charges.
7. Service Provision
- For Enbryx app and related services, activation details will be provided via email or in-app notification.
- Some services may require configuration or installation, which will be arranged upon purchase.
8. Damaged or Lost Items
- If your order arrives damaged, please report it to us within 48 hours of delivery at info@jwmwares.com with a clear subject line and detailed photos for assessment.
- JWM Wares is not responsible for packages once they have been marked as “delivered”. If you believe your package has been lost, stolen, or misplaced, please contact the courier directly. You may also contact our customer support team, who will be more than happy to assist you in resolving the issue.
9. Contact Us
For any other shipping or service-related inquiries, please email us at info@jwmwares.com and clearly state your concern in the subject line.
Frequently bought together
Sunvolts 3.6 kW Hybrid Inverter (PV5000, 24V)
- 2 or More Load Ports
- “Never Overload” Operations
- Solar Power Feed to All Loads
- Controlled Export Functionality (Zero/Partial/Full)
Inverter Wi-Fi Dongle (JWM-SID-MnC-0001-USB)
This Wi-Fi Dongle is an essential accessory for enabling internet-based Enbryx operations on your Sunvolts hybrid solar inverter.
This compact and reliable device allows your inverter to connect seamlessly to the Enbryx mobile app, giving you real-time access to your system's performance, power generation, grid interaction, and battery data—anytime, anywhere!
Designed for convenience and compatibility, this dongle ensures smooth data communication between your inverter and the cloud.
Key Features:
- Required for internet-based Enbryx operations
- Enables remote monitoring and control via the Enbryx mobile app (available on iOS & Android)
- Easy plug-and-play setup through the inverter’s USB port
- Stable and secure wireless connectivity with 2.4GHz Wi-Fi support for uninterrupted data sync
- Compact, durable, and built for continuous outdoor operation
You may also like…
Inverter Wi-Fi Dongle (JWM-SID-MnC-0001-USB)
This Wi-Fi Dongle is an essential accessory for enabling internet-based Enbryx operations on your Sunvolts hybrid solar inverter.
This compact and reliable device allows your inverter to connect seamlessly to the Enbryx mobile app, giving you real-time access to your system's performance, power generation, grid interaction, and battery data—anytime, anywhere!
Designed for convenience and compatibility, this dongle ensures smooth data communication between your inverter and the cloud.
Key Features:
- Required for internet-based Enbryx operations
- Enables remote monitoring and control via the Enbryx mobile app (available on iOS & Android)
- Easy plug-and-play setup through the inverter’s USB port
- Stable and secure wireless connectivity with 2.4GHz Wi-Fi support for uninterrupted data sync
- Compact, durable, and built for continuous outdoor operation
Sunvolts 6.5 kW Hybrid Inverter (PV9000, 48V)
- 2 or More Load Ports
- “Never Overload” Operations
- Solar Power Feed to All Loads
- Controlled Export Functionality (Zero/Partial/Full)
Usman –
Working very well

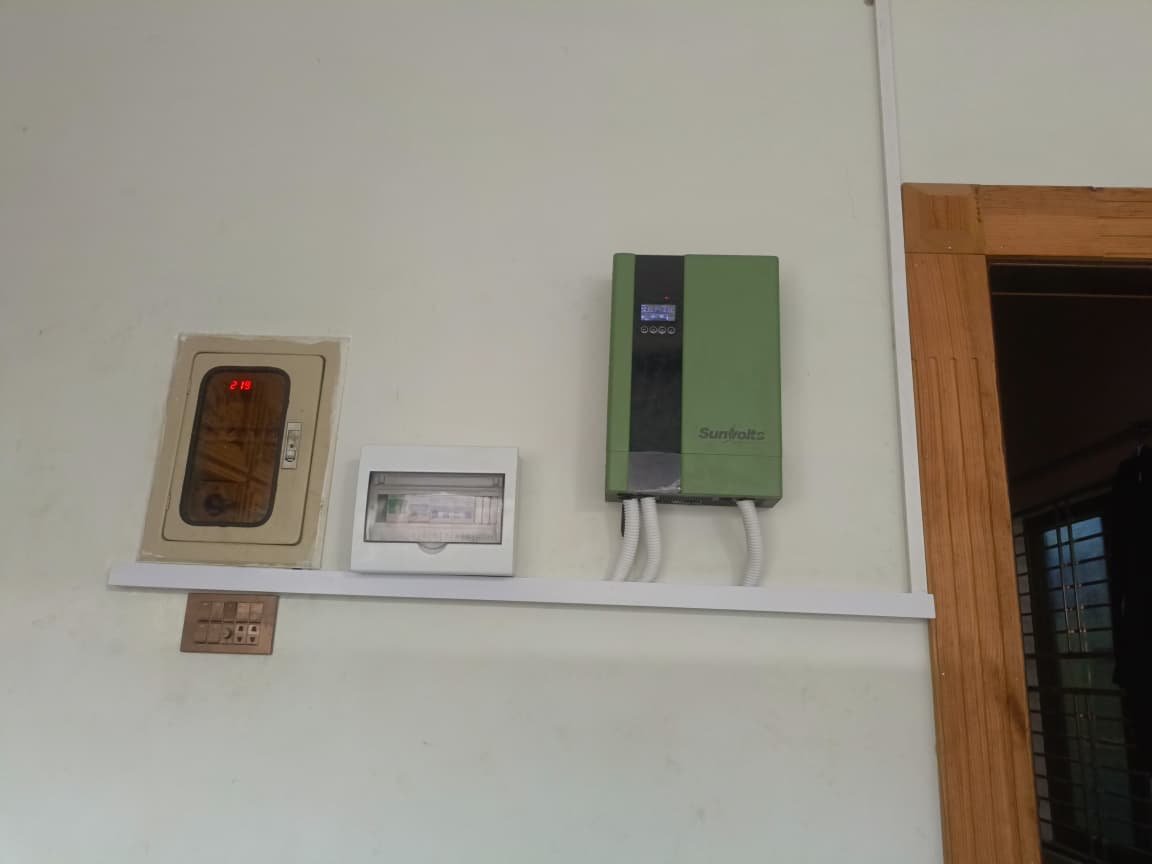

Excellent product and installation service
